Ford Front U-Bolt Kits

Replacement Front U-bolt Kit

Application:

Truck:

    80-97 F-250/350 or 80-96 F-150/Bronco Solid Axle Converted

Axle:

    85-97 Ford Dana 60 or 99-04 Ford Dana 50/60

Springs:

    3" wide Springs

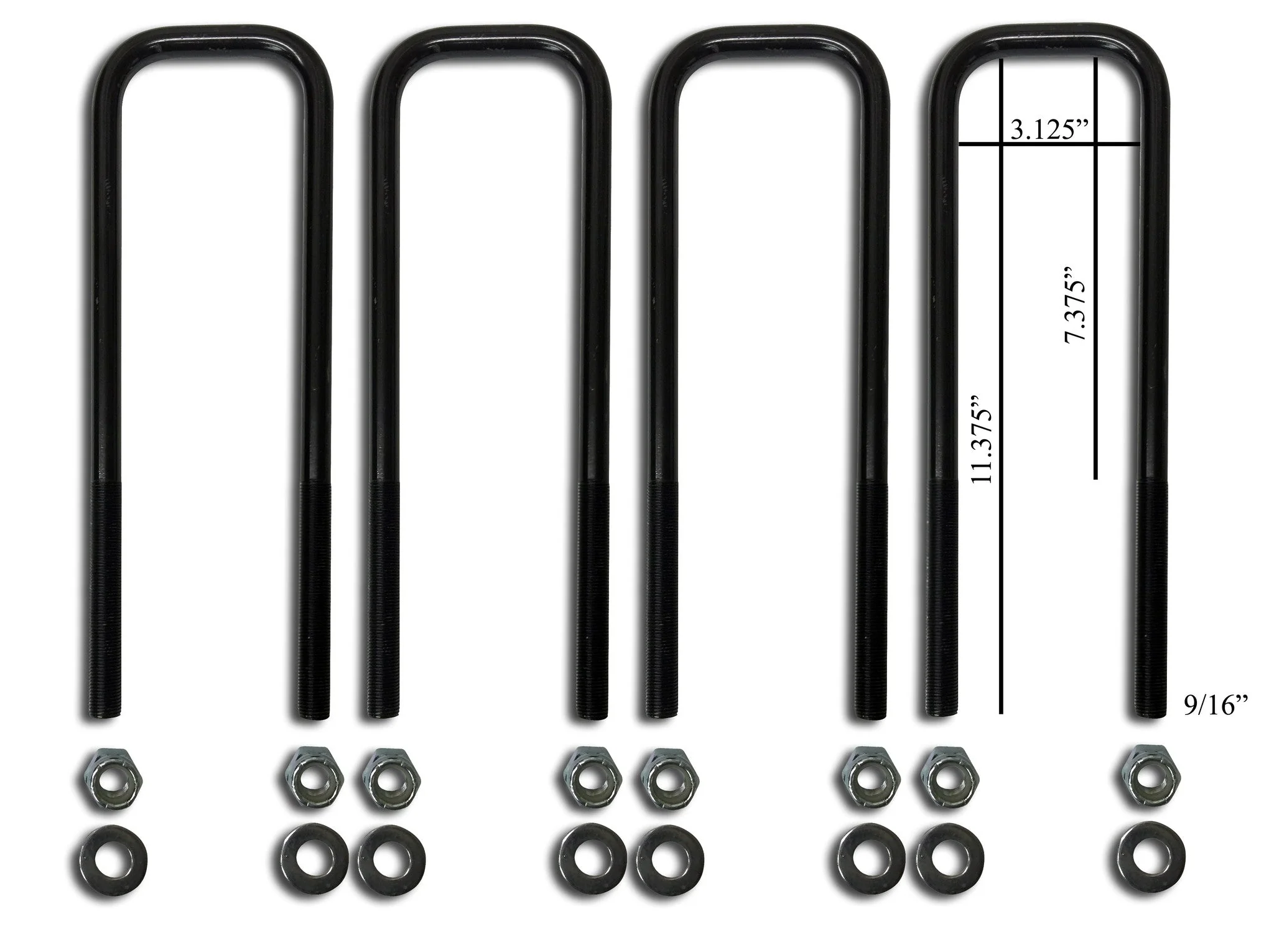

Includes:

4 U-bolts

8 9/16 Thick Flat Washers

8 9/16 hi-nuts

U-Bolt Sizing:

 All U-Bolts are square top for fit on stock Ford stamped U bolt retaining plates

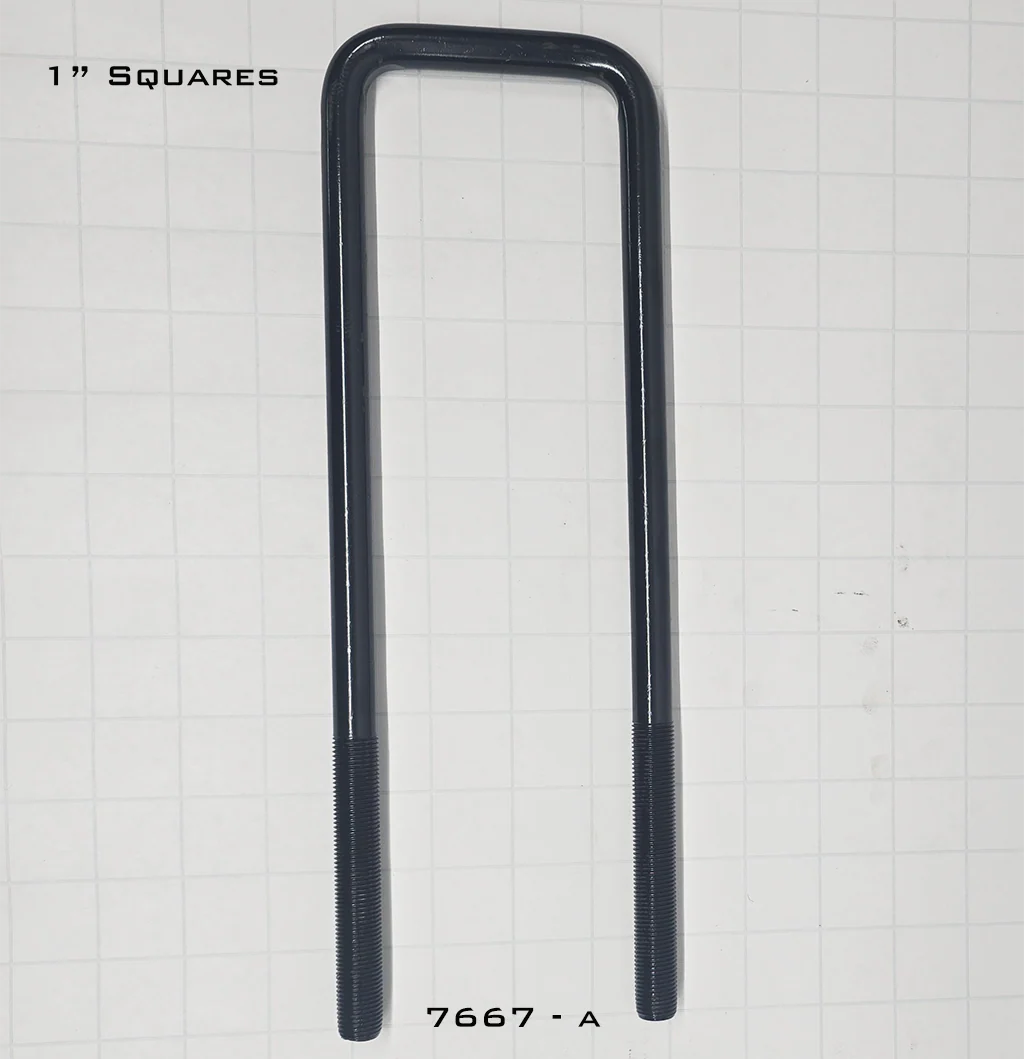

 Option A: 7667

     3.125" inside width

     11.875" Length

     4" of thread

     9/16" x 18 thread pitch

OPTION A IS USED WITH THICK LIFT SPRING PACKS.

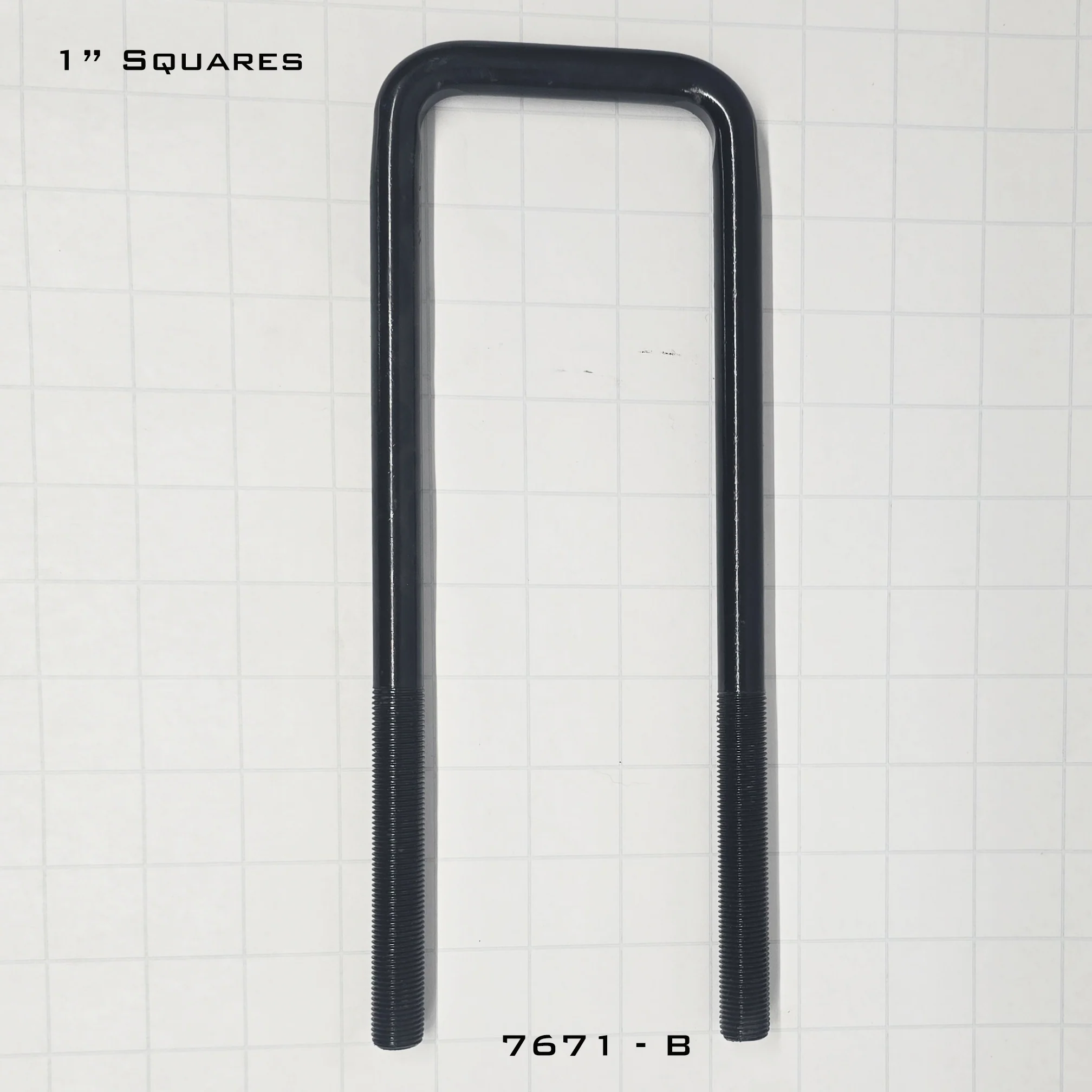

 Option B: 7671

     3.125" inside width

     10.00" length

     4" of thread

     9/16" x 18 thread pitch

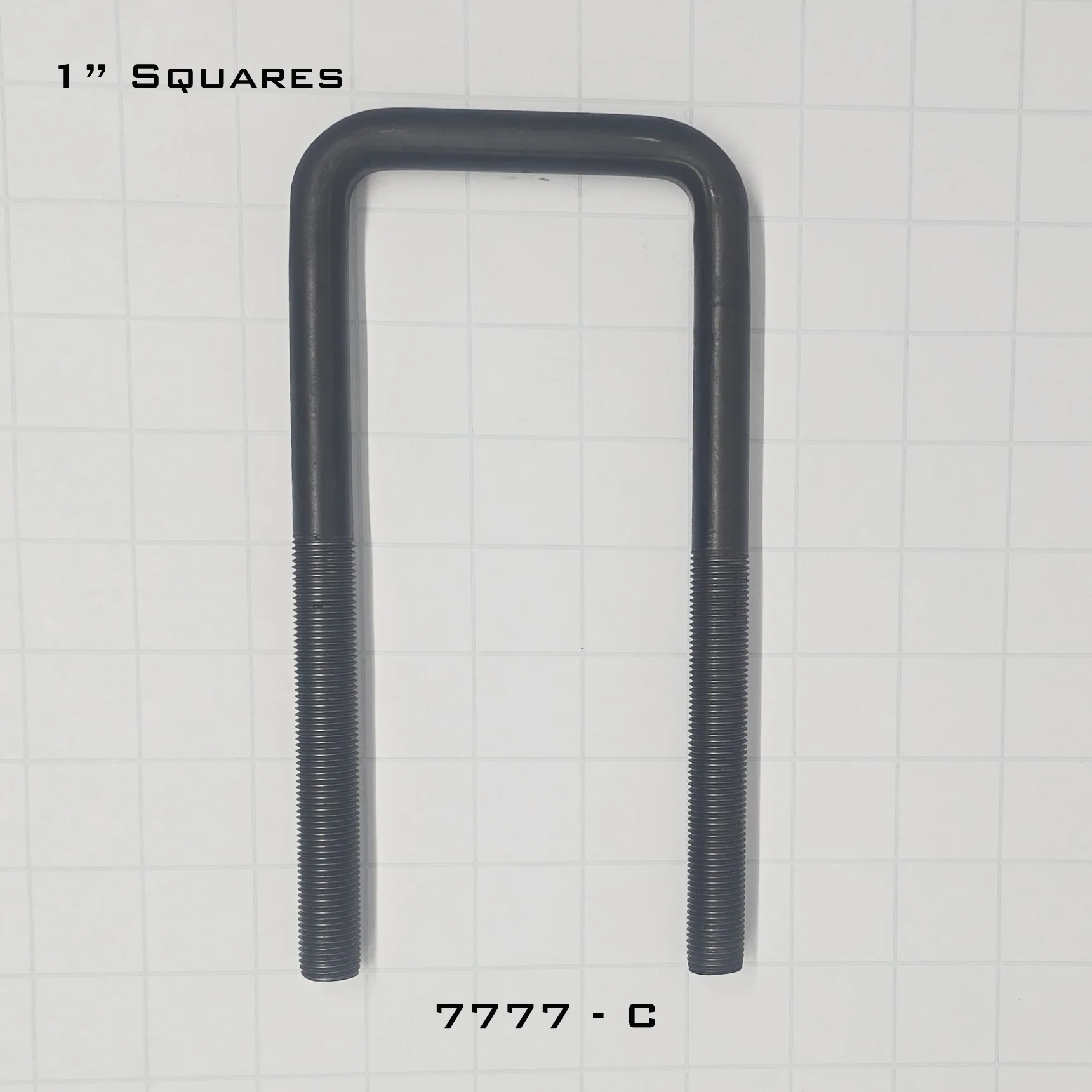

Option C: 7777

     3.125" inside width

     7.750" Length

     3.250" of thread

     9/16 x 18 thread pitch

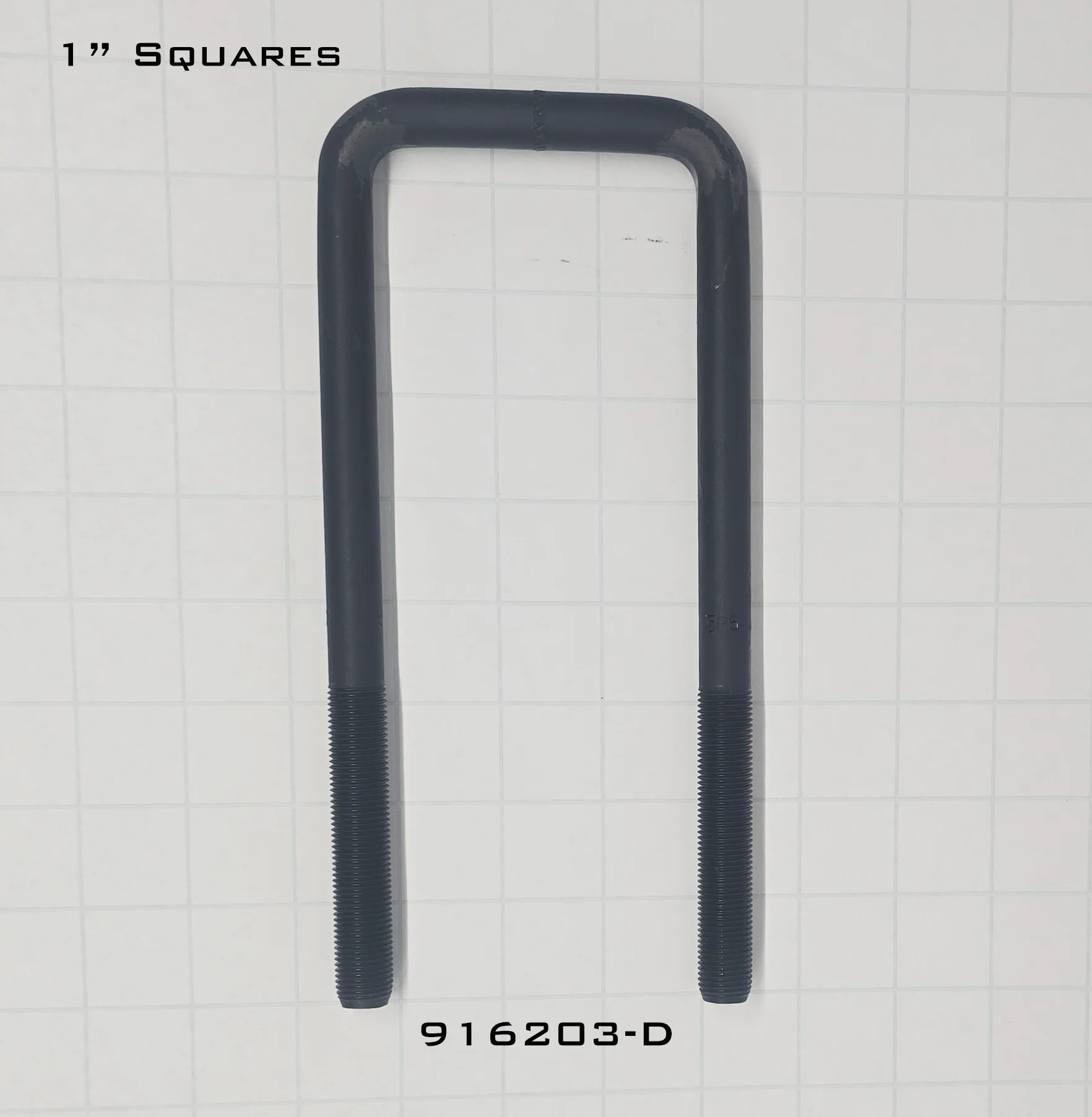

Option D: 916203

     3.125" inside width

     8.250" Length

     3.750" of thread

     9/16 x 18 thread pitch

OPTION D IS USED ON ALL 85-04 DANA 50/60 AXLES WITH TWO LEAF SPRING PACKS.
