80-96 Ford F-150/Bronco 4x4 SAS Kit

80-96 Ford F-150/Bronco 4x4 SAS Kit

Description

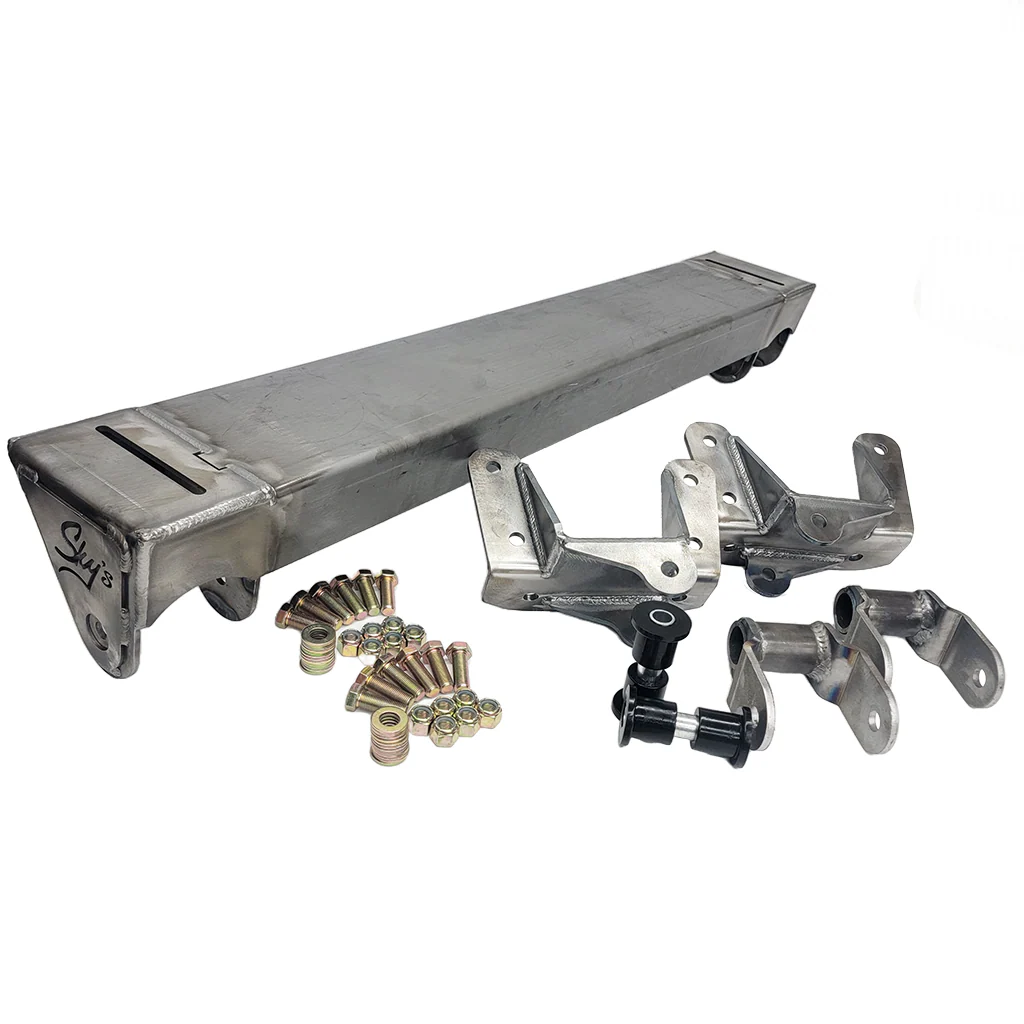

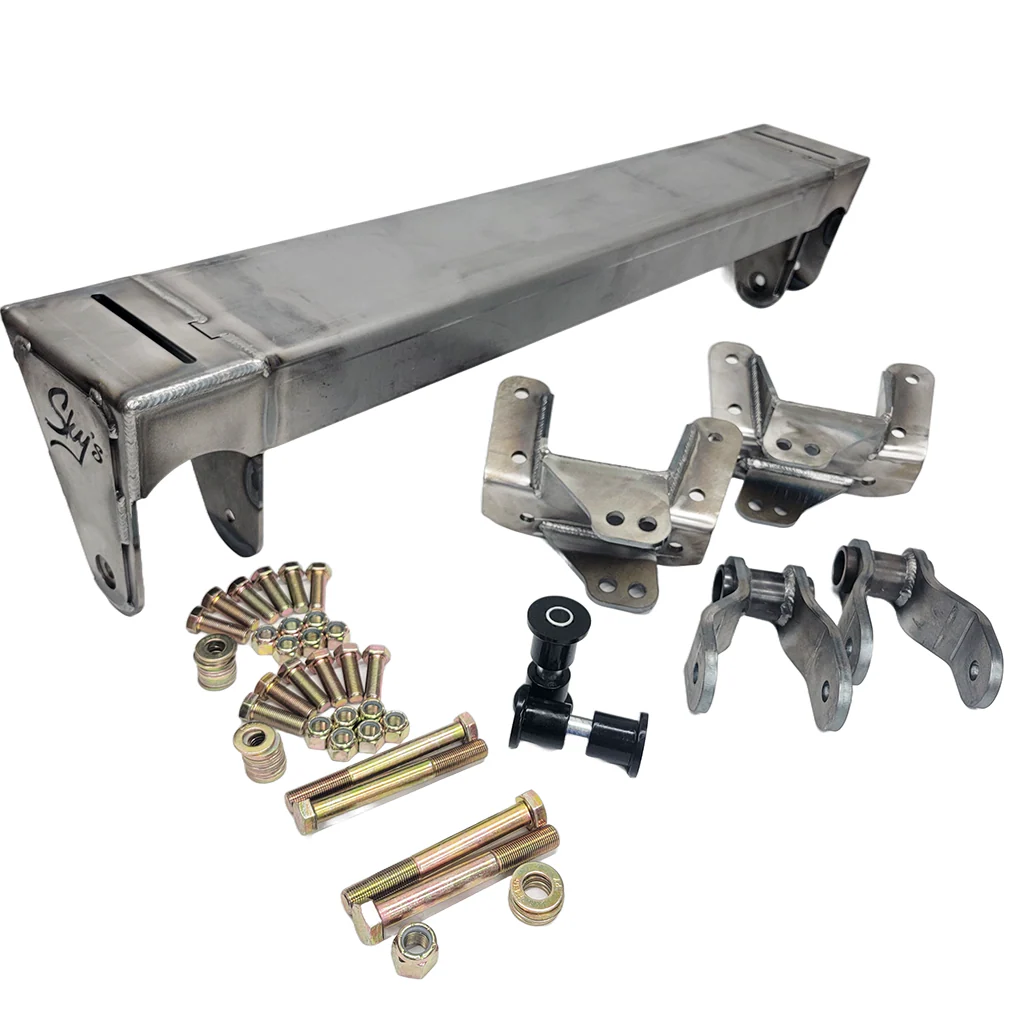

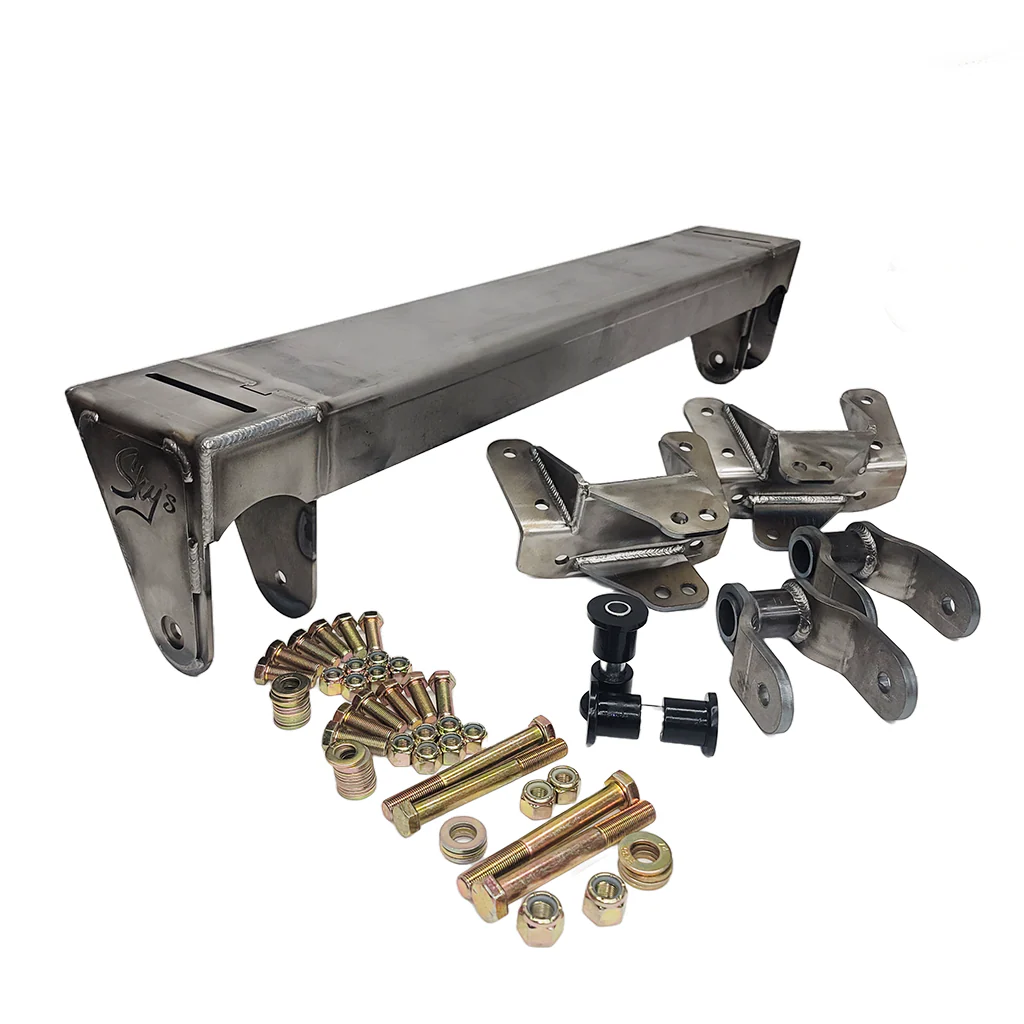

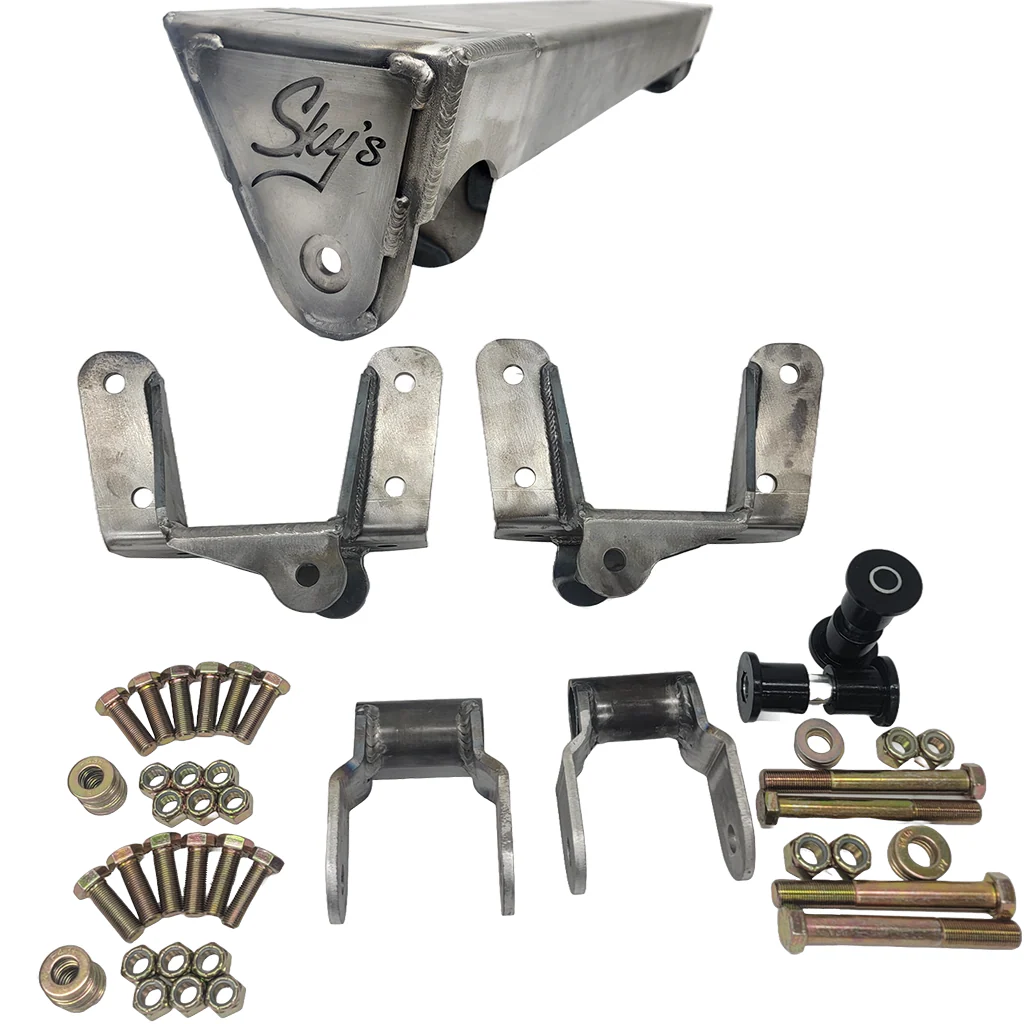

  • DIY Leaf Spring Solid axle conversion for the 80-96 era Ford F-150 and Bronco coil sprung TTB (Twin Traction Beam) 4x4 trucks.
  • Kit is weld on, requires knowledge of suspension design and fabrication/welding skills.
  • Now available in both 2" and 4". (Based off a stock height F-350 4x4) Depending on springs used, with a Dana 60 (or 99-04 Dana 50) this should be approximately 4 or 6" lift over a stock F-150/Bronco using stock gasser Ford springs.
Application:

- Truck: 80-96 F150/Bronco
- Springs: 85-97 52" F-350 Front Springs or 99-04 56" Front F-250/350 Springs
- Axle: 85-97 Ford F-350 Dana 60 36.5" Spring Pin Center
            or
            99-04 Super Duty Dana 50/60 37.5" Spring Pin Center

Additional Info:

  • Can use a Dana 44 F-250 axle with spring pads moved to correct width and converted to 5 lug f-150 outer components to keep the factory rear axle.

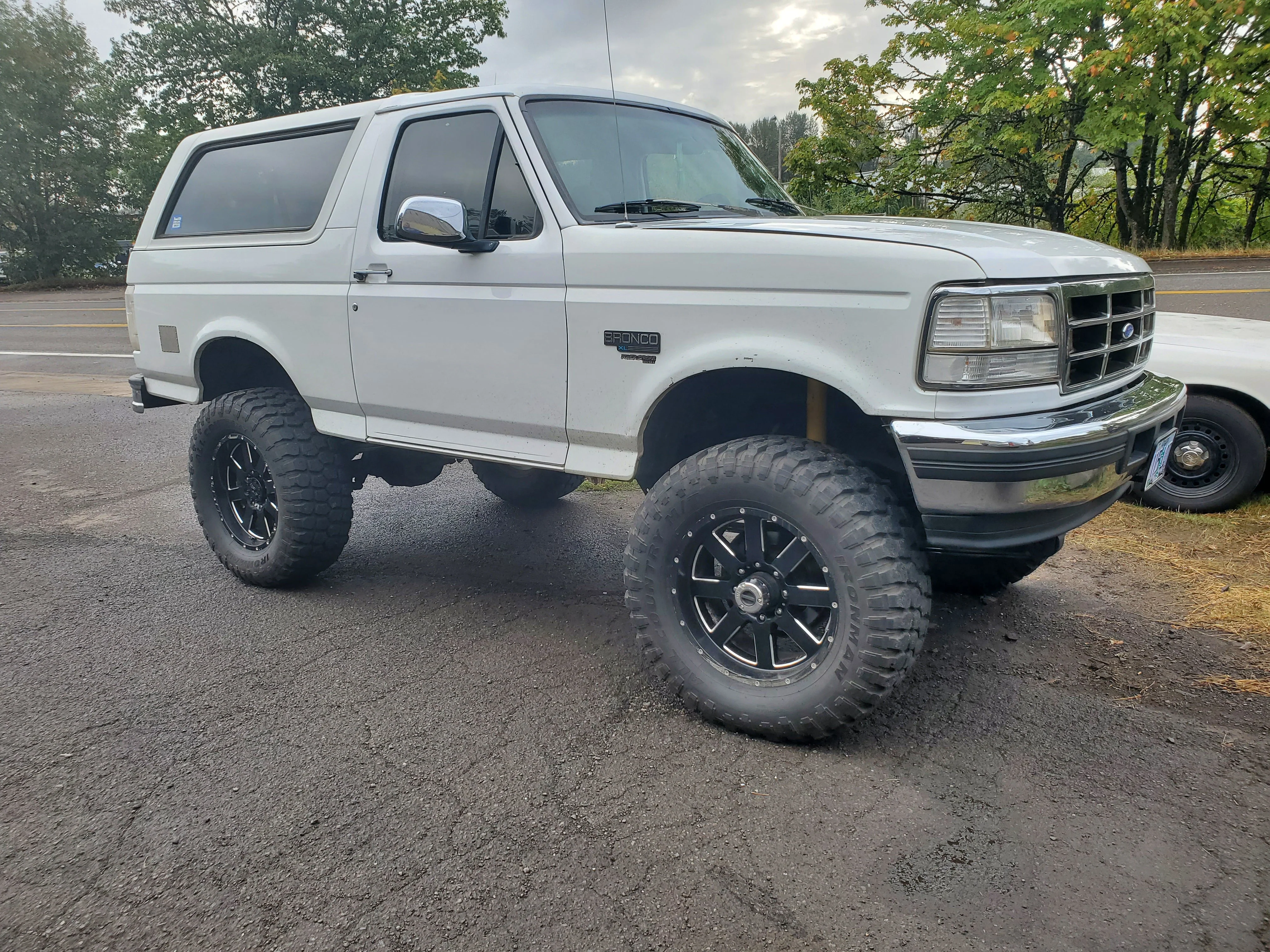

  • Bronco / F-150 will sit approximately 4" over stock height on stock OBS springs, may be taller on SD springs.

  • Part numbers and specs for Superduty Springs can be found HERE
    Installation


    FORD-SAS-BF150 Instructions

    Sky's Bolt Torque Reference Sheet





    Select Axle Spring Perch Center
    Select Leaf Spring
    Select Lift Height
